[ HD 1080P resolution ] -Utilize HuaWei chipset, 1920 1080p resolution provide more clarity. The living stream can be accessed via iOS / Android mobile Phone, Windows PC. Max 4 devices can view at the same time. One device can add Max 64 cameras. Support 2.4Ghz wifi (does not support 5Ghz wifi currently).
[ Pan / Tilt / Zoom Camera ] -107.7 diagonal wide viewing angle lens combine with 355?? horizontal & 120?? vertical rotation range, give your house 360 surveillance protection. You can slide the screen to rotate the camera or make it cruise automatically via click ?€?Horizontal Cruise or Vertical Cruise.

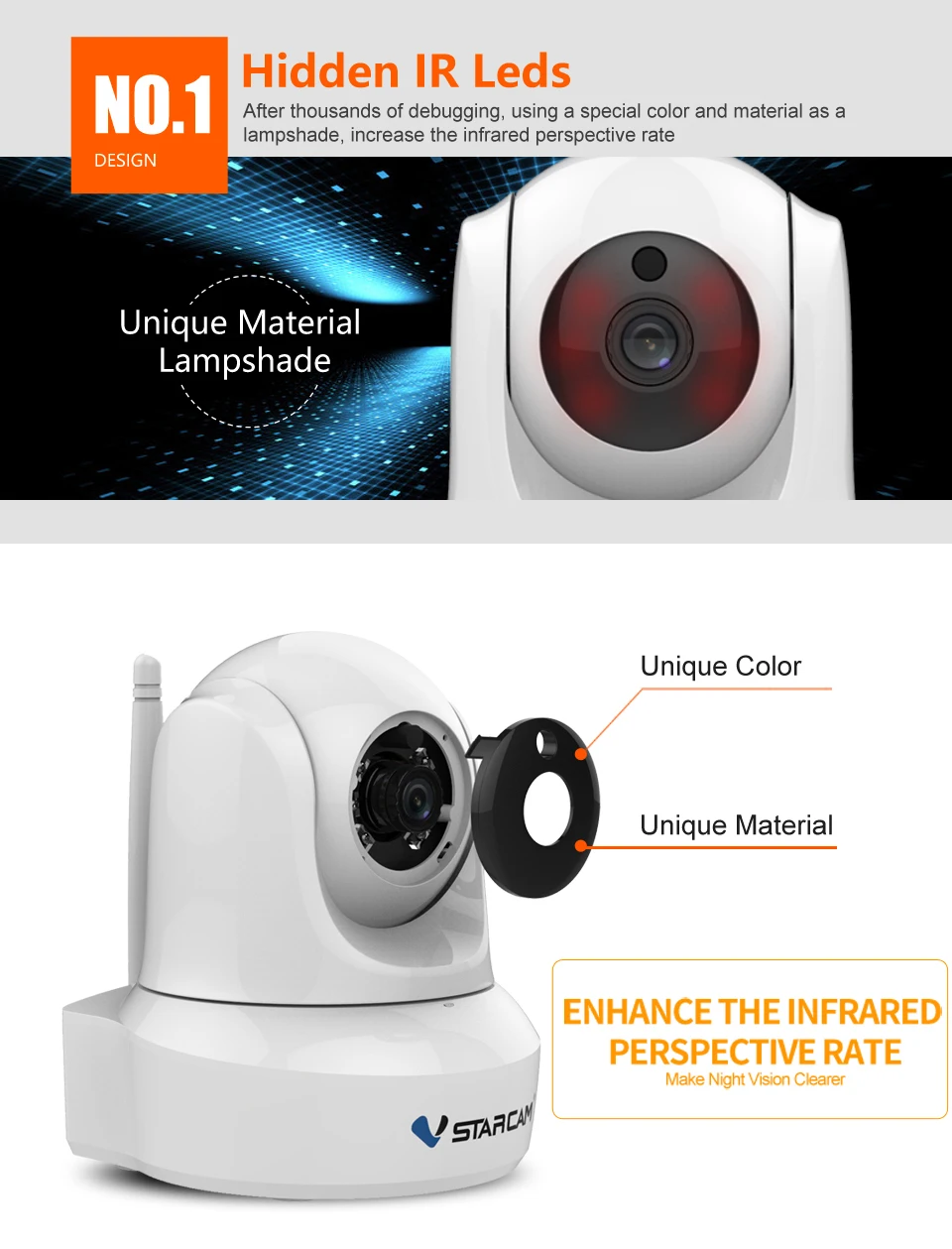

[ Night vision & Motion detection ] -VStarcam camera built-in6pcs IR LED infrared vision light, the night vision up to 10m. When the camera is at defense the motion detection alarm is available, Alert will be sent by email / app. You can use it as baby / elder / nanny / pet monitor. Keep the place or people you love safe 24/7.
[ Two- way audio ]-Built-in speaker and microphone, you can see, hear and speak to whoever is standing in front of VStarcam home security camera directly,such as baby,pet,elderly,and thief.

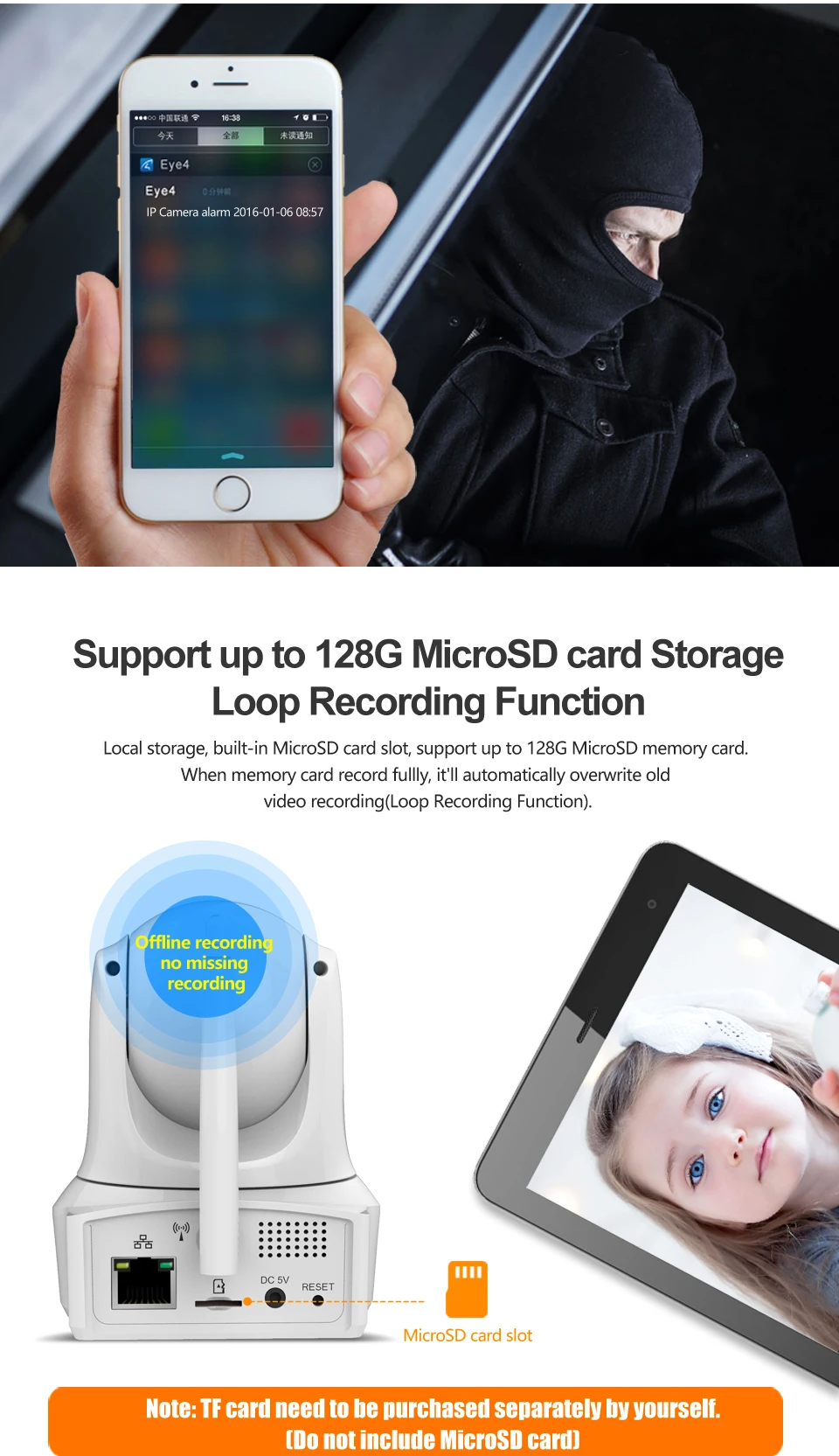

[ Cloud Service & Max 128G TF card storage ] -Support max 128G TF card(card not included) storage. VStarcam Cloud Service is also available. You can live-stream your footage or play back based on your preference. Easy operation with intuitive interface. VStarcam provide 1 year warranty.
Specification
System
Operation system
Embedded Linux OS
Online visitor
Support 4 visitors at the same time
Image Capture
Image sensor
C29
1/4 inch 720p Progressive Scan CMOS
C29S
HI3516E V200 1/2.9 inch 1080p Progressive Scan CMOS
Minimum Illumination
C29
0.5Lux???Color mode???,0.1Lux???B&W Mode???
C29S
0.3~0.5Lux???Color mode???,0Lux???B&W Mode???
Lens/View Angle
C29
4.0mm@F2.0/76??
C29S
4.0mm@F2.0/104??
Night vision
C29
Dual Filter,IR-Cut???6pcs 850nm patch??IR LED IR irradiation distance:5???10m
C29S
Dual Filter,IR-Cut???6pcs 850nm ??5mm IR LED IR irradiation distance:5???10m
Video
Encode format
C29
H.264 main profile@level:4.0/Motion-JPEG/JPEG
C29S
H.264+/H.264 main profile/Motion-JPEG/JPEG
Resolution
C29
Main Stream:??720p(1280X720)@25fps??Sub Stream:????360p(640X360)@25fps??Third Stream:??180p(320X180)@10fps
C29S
Main stream???1080p(1920??1080)@30fps/1296p(2304??1296)@30fps??Substream???360p(640??360)@15fps
Bit Rate/Max Fps
C29
128???4096kbps/25fps
C29S
128???4096kbps/30fps
Image adjustment
Brightness and contrast are adjustable
Audio
Input
C29
Built-in -40 dB microphone
C29S
Built-in -38 dB microphone
Output
Built-in speaker(81W)
Sampling frequency / width
8KHz/16bit
Compression standard
ADPCM/32kbps
Network
Ethernet
10Base-T / 100Base-TX, RJ45 connector
Protocols
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc
Wireless LAN
IEEE802.11b/g/n
Wireless LAN Frequency
2.4~ 2.4835GHz
Wireless LAN security
64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption
Pan-tilt
Pan-tilt
Pan 355 ,Tilt 120
Preset position
PC APP support 16 positions, phone APP:support 5 positions
Memory
Socket
C29
TF Push-push socket,Maximum support 128GB; Cloud Storage
C29S
TF Push-push socket,Maximum support 256GB; Cloud Storage;NVR???NAS
